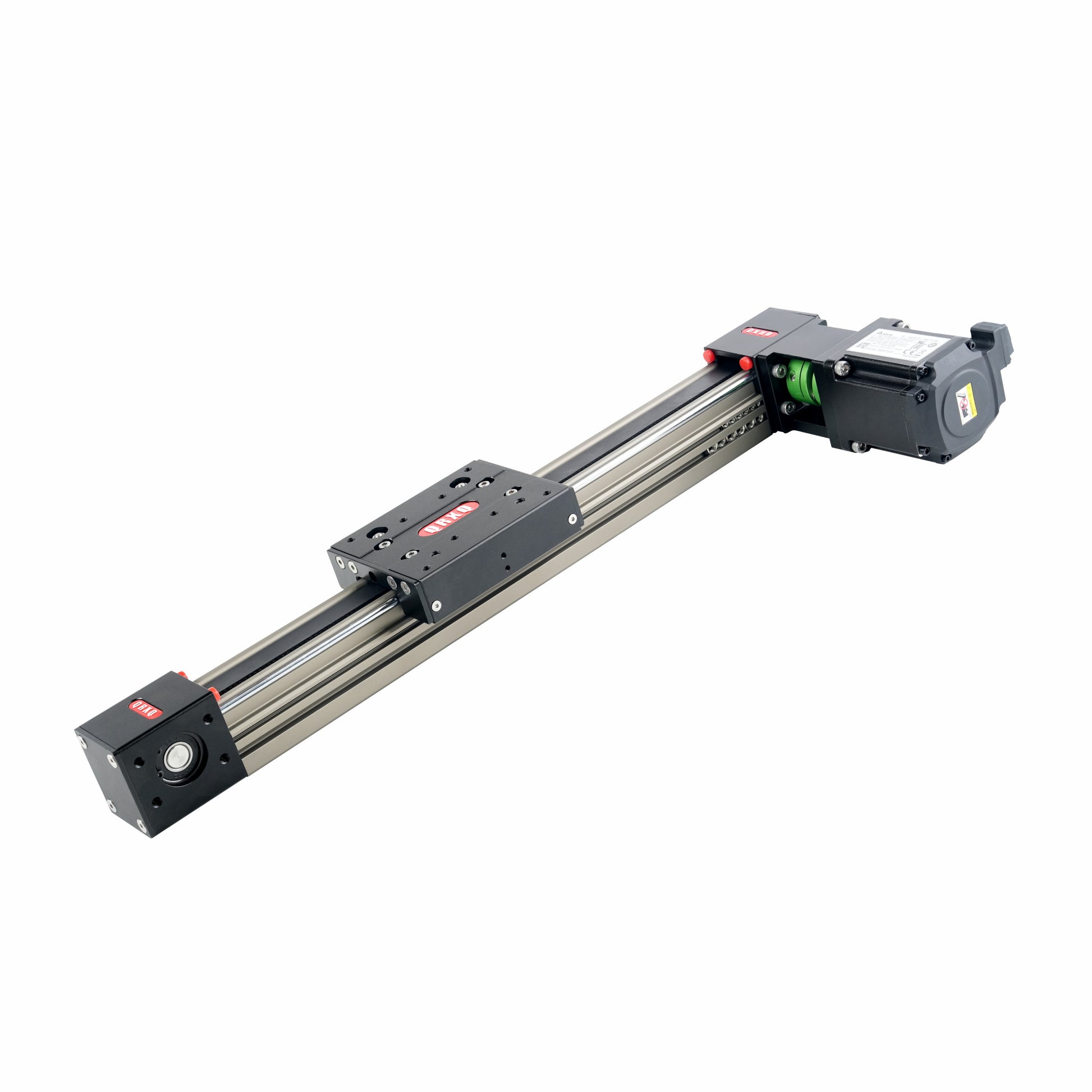

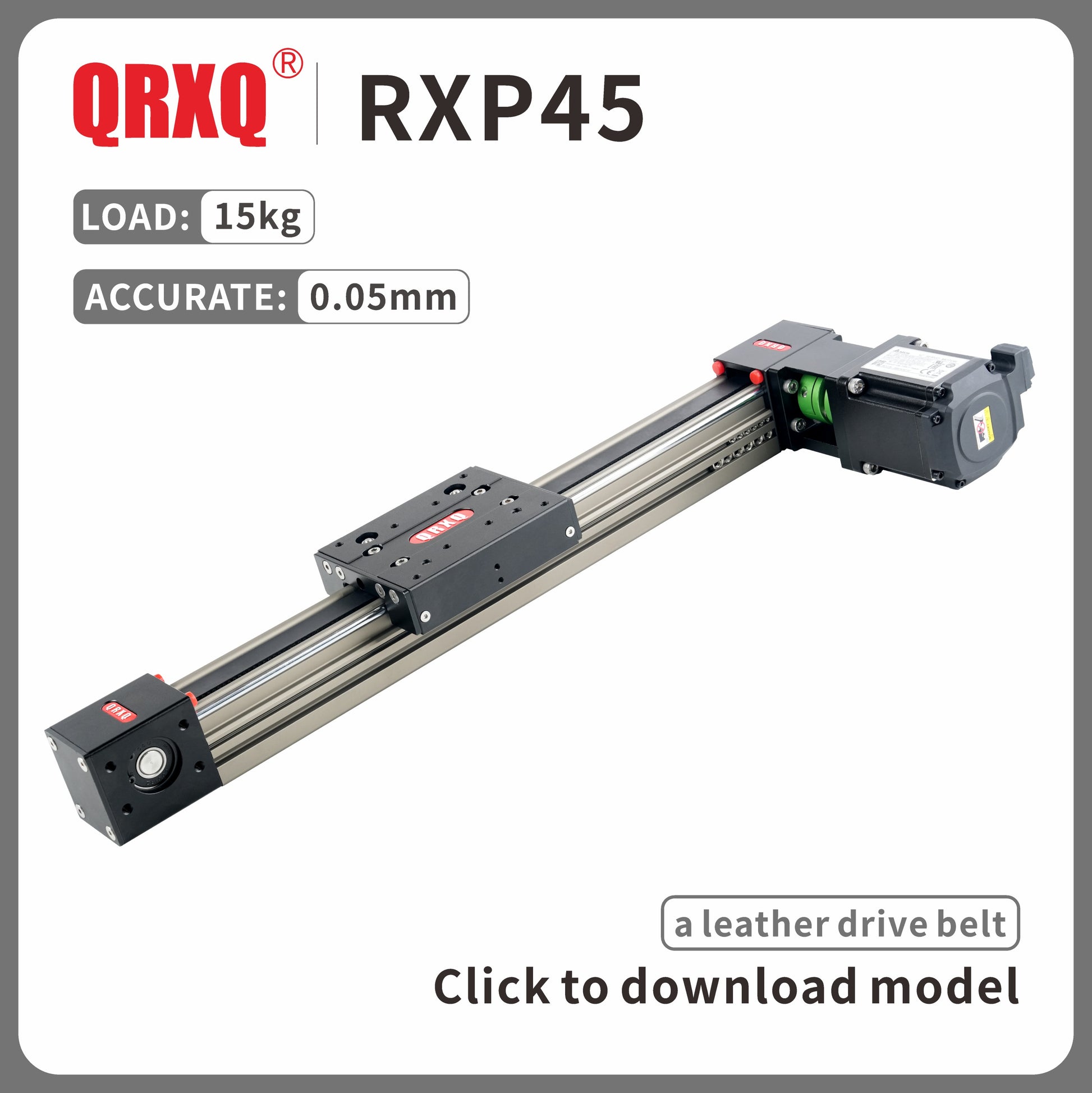

RXP45-Qrxq precision electric linear synchronous belt slide rail
RXP45-Qrxq precision electric linear synchronous belt slide rail
Normal fiyat
$234.00 USD
Normal fiyat
İndirimli fiyat
$234.00 USD
Birim fiyat
/
|
item
|
value
|
|
Condition
|
New
|
|
Warranty
|
6 Months
|
|
Applicable Industries
|
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Printing Shops, Construction works , Energy & Mining, Other
|
|
Weight (KG)
|
8
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2020
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
|
|
Model Number
|
RXP45
|
|
Place of Origin
|
China
|
|
|
Sichuan
|
|
Brand Name
|
QRXQ(QRXQ)
|
|
Material
|
Aluminum alloy
|
|
Effective stroke
|
100mm-3000mm,Effective stroke can be customized
|
|
Straightness/Twist
|
≤0.01mm/300mm
|
|
Torque
|
≤3N.m
|
|
Stage width
|
90mm
|
|
Module width
|
45mm
|
|
Belt specifications
|
3M-15 (steel wire)
|
|
Synchronous wheel specifications
|
HTD3M, 25 teeth
|
|
positioning accuracy
|
0.05MM
|
|
Recommended speed
|
≤700mm/s
|
|
Load weight
|
15KG in horizontal direction/5KG in vertical direction
|
